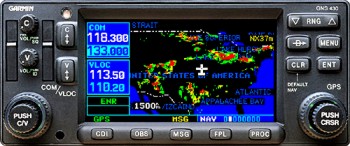

GNS 430 (standard)
 The GNS 430 is the most versatile panel-mounted product GARMIN has produced to date. It combines GPS navigation, VHF communication, and moving map graphics on a big color display. This "all in one box" 12-channel unit offers IFR GPS, ILS, VOR, LOC and glideslope capability in a single, space-saving package.
Many boxes offer some of the same features as the GNS 430, but it's the integration of so many functions that sets this latest aviation product apart. The GNS 430, which is designed as the first in a line of new aviation products, has plenty of growth potential as it is designed for WAAS compatibility. The GNS 430: combining all the navigation capabilities necessary today with all known and defined technologies of the future.)
GI 106A (Standard)
 The GI 106A is a panel-mounted Course Deviation Indicators (CDI) with rectilinear meter movements and contain integral GPS, NAV, and VLOC mode annunciators. The GI 106A has a VOR/LOC/GPS needle, TO/FROM indicator, and NAV warning flag, plus a GS needle and flag. The unit contains an integral resolver for OBS feedback. The GI 106A unit also features anti-reflective lenses.
GMA 340 (Standard)
 The GMA 340 audio panel meets the needs of aircraft owners and operators who require reliability and versatility in the essential audio switching function.
The GMA 340 features innovative LED-illuminated push button controls that allow audio selection of both NAV and Comm audio. Large buttons activate the Comm microphone and audios for up to three Comm transceivers to simplify cockpit workload. Another feature of the GMA 340 is the Split Comm, which allows the pilot to transmit/receive on Comm 1 and the co-pilot to transmit/receive on Comm 2. MASQ™ processing reduces ambient noise from the avionics inputs. Comm transmit indication is also provided. Speaker selection is available to monitor the aircraft radios or to make PA announcements. There are two unswitched inputs for telephone ringers, altitude alert warnings, or other warning tones. In addition, the GMA 340 includes a six-place VOX intercom with three selectable modes of isolation, dual stereo music inputs, and independent pilot, co-pilot, and passenger volume control. Each microphone input has a dedicated VOX circuit to ensure that only the active microphone is heard when squelch is broken. Special cabin noise de-emphasis circuitry enhances cockpit communications. Also standard is the three-light Marker Beacon Receiver/Indicator with high/low sensitivity selection and SmartMute™ marker audio muting.
Surface mount technology provides shallow depth and light weight, which simplifies installation in the tightest aircraft spaces and saves precious panel space. Operation is available in 14 or 28 volts without voltage converters or dropping resistors. Installation is simplified with the built-in intercom and marker beacon, and the GMA 340 also features photo cell dimming of annunciators, pilot fail-safe mode connection to Comm 1, and FAA TSO approval.
Read what Private Pilot magazine had to say about the GMA 340:
"The GARMIN Model 340 audio panel, reviewed above, is the finest example of communications integration and control for GA. The ICS system offers everything: individual level controls, positive com override of crew/music audio, stereo or monaural operations, soft-on/off, music/voice, crew-isolation, positive VOX control—you name it! The marker beacon and multifunction communications controls complete an excellent design. This unit will be as popular as GARMIN's GPS units." -Private Pilot, March 1999
GTX 327 (Standard)
 The GTX 327 solid-state Mode C digital transponder, GARMIN revolutionizes a part of the panel that has been long overlooked. This full-featured, TSO certified transponder brings a unique level of functionality and utility to your airplane. Its solid-state transmitter provides 200 W nominal power output and eliminates the need for a cavity tube which, when it fails, will be expensive to replace. And since the GTX 327's design is 100 percent solid state, there's lower power consumption, much lower heat emission, and no warm up time—all of which translates into a longer service life.
Some of the GTX 327's biggest features are the easiest to see. Among them, the easy-reading DSTN Liquid Crystal Display which reverses the numbers out of black for optimal viewing. The numeric keypad makes entering a squawk code a snap, and a dedicated VFR button allows for quick-and-easy 1200/VFR squawking. The GTX 327 also offers important timing and display functions such as flight time and count-up and count-down timers, as well as current pressure altitude.Together, these features represent a whole new standard in transponder utility.
Bendix/King KX155 NAV/COM with the KI 209 VOR GS (Standard)
  Solid state, 760 frequency COMM transceiver, 200-channel NAV receiver, 40-channel glideslope receiver, 10-watts, 14v or 28v. Simultaneous, digital, gas-discharge display of active and standby NAV and COMM frequencies. Push button frequency flip-flop. Built-in audio amplifier.
Meets DO-156 frequency selectivity requirements, TSO'd. (-42/43).
Sandel SN3500 EHSI indicator (optional)
This new 3-ATI unit is a third-generation, TSO’d product suitable for both
turbine and piston aircraft. It will also incorporate the compact size,
pilot-friendly features, bright display and innovative packaging that led to
the SN3308’s excellent market acceptance.
Product Benefits
- Full-color moving map Nav
- Sunlight-readable display with full
360-degree viewing angle
- TSO’d and STC approved for use as a
primary heading and Nav display
- Internal Jeppesen NavData™ database
supplements IFR flight plans
- Drop-in 3-ATI size with 4-in. equivalent
screen
- Upgradeable EHSI with traffic and WSI
datalink weather options
- Rugged, vibration-resistant system
certified for helicopter operations
- High reliability with analog and digital
interface flexibility
- Inputs for GPS waypoints, DG, VOR, ADF,
DME, marker beacons and Stormscope®
- Real-Time Map Technology™ for
instantaneous tracking

|
Cost of Avionics when purchased individually
Suggested Retail (does not include installation cost, antennas etc.. )
| Garmin GNS 430 | $9,900.00 |
| Garmin GI 106A | $1,950.00 |
| Garmin GMA 340 | $1,495.00 |
| Garmin GTX 327 | $1,895.00 |
| Bendix/King KX155 | $3,480.00 |
| Bendix/King KI209 | $1,120.00 |
| Sandel SN3308 HSI (optional equipment) with Mid Continent Remote Gyro for HSI and Mid Continent Flux Gate for HSI. (does not include installation cost) | $16,495.00 |
|
Not only will people want to fly it because of its reputation and looks, but they will love the simple layout of the cabin, and the fact that they get to use some of the best avionics equipment on the market.
